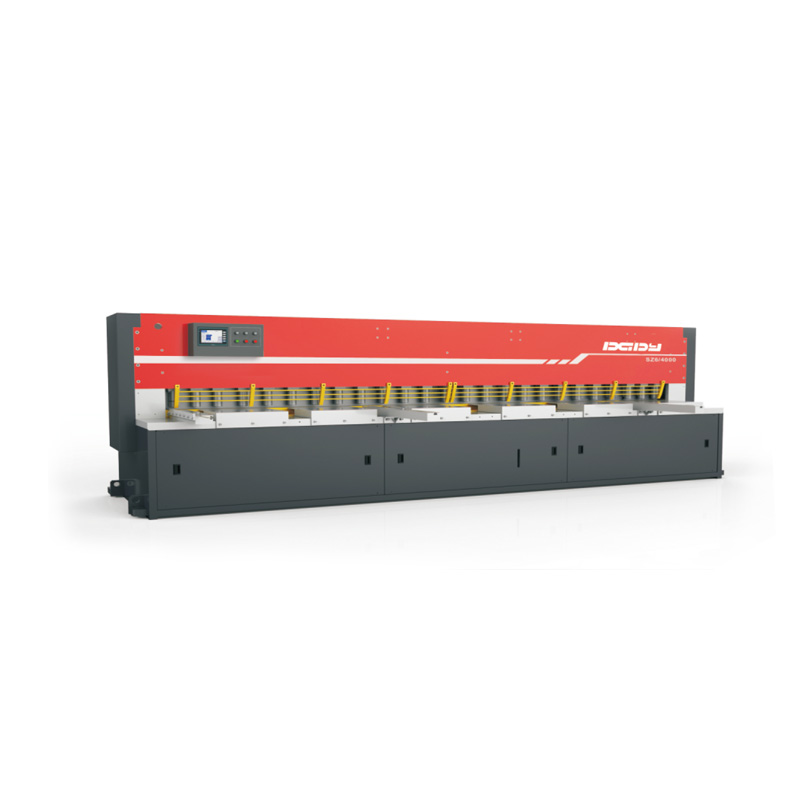

    DSH CNC Guillotine Shears

    Introduction：
    Use range：
    Integral welding machine body
    Hydraulic drive including return, total four cylinders.
    Rectangular blade, four blades available, long lifetime
    Automatic adjust of knives space, when material less 6mm
    Memory counting function, multi-step cutting
    Alignment by light, precise and convenient

    GET A QUOTE

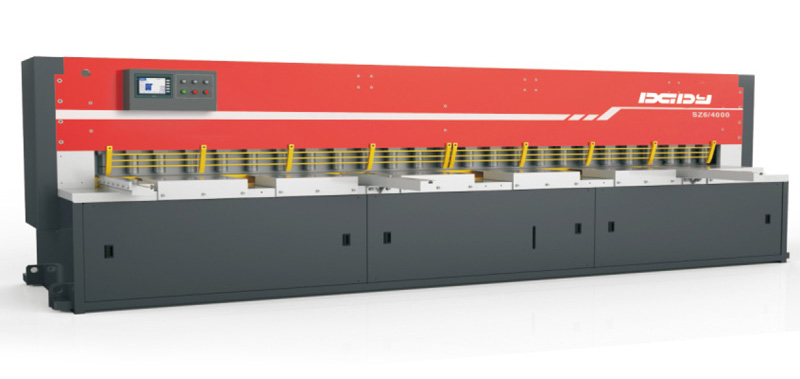

    Picture Show

    Integral welding machine body

    Hydraulic drive including return, total four cylinders.

    Rectangular blade, four blades available, long lifetime

    Automatic adjust of  knives space, when material less 6mm

    Memory counting function, multi-step cutting

    Alignment by light, precise and convenient





    Technical Parameters



    Specifications UNIT MODEL
    SZJ/31  SZJ6/40 SZQ8/31 SZQ8/40 SZQ8/62 SZQ13/31 SZQ13/40 SZQ13/62 SZQ16/31 SZQ16/40 SZQ16/62 SZQ20/31 SZQ20/40 SZQ20/62 SZQ25/31 SZQ25/40 SZQ30/31
    Shear
    thickness    		 mm 6 6 8 8 8 13 13 13 16 16 16 20 20 20 25 25 30
    mm 3 3 4 4 4 8 8 8 10 10 10 12 12 12 16 16 20
    shear length mm 3100 4000 3100 4000 6200 3100 4000 6200 3100 4000 6200 3100 4000 6200 3100 4000 3100
    shear pressure Kn 150 150 275 275 275 580 760 620 850 850 850 1380 1380 1380 1960 1500 2200
    backgauge range mm 750 750 750 750 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
    shear angle degree 2 2 0.5-2.0 0.5-2.0 0.5-2.5 0.5-2.5 0.5-2.0 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5 0.5-2.5 0.5-3.5 0.5-3.5 0.5-3.5
    strokes spm 15-45 12-45 15-45 13-45 8-35 7-35 10-30 7-45 9-33 8-30 7-20 7-35 5-20 5-18 5-40 5-20 4-15
    *18-45 *15-45
    Depth of throat mm     100 100 100 100 100 100 100 100 100 100 100 100 100 100 100
    Oil tank capacity L 230 250 350 400 680 450 560 680 590 590 680 590 620 650 1050 1100 1000
    Main motor power Kw 7.5 7.5 11 15 22 15 22 30 37 37 37 45 45 30*2 55 55 55
    Overall
    dimensions    		 Lenght mm 3500 4410 3760 4750 7090 3860 4885 7100 3870 5020 7135 3980 5050 7300 4260 5340 4485
    *4000 *4700
    Width mm 2120 2200 1850 1920 2450 1960 2000 2550 1950 2190 2550 2050 2500 2600 2700 2700 2850
    *1800 *1800
    Height mm 2100 2260 2180 2325 2820 2320 2500 2830 2350 2580 2870 2480 3150 3200 2885 3740 2985
    *1500 *1640
    Net weight approx Kg *7000 10800 6500 10800 24000 8700 17000 29800 14000 18000 36000 17000 30500 51500 28000 38000 32000
    *9700
