    CNC V-CUT Machine

    Introduction：
    Features and Functions
    A.Touch screen graphi cprogramming, user-friendly interface.
    B.The controller develop preset V cutting parameter depending on sheet material and thickness.A learner operator can do the job.
    C.Under graphic programming mode,the operator can draw parts profiles and input dimensions on the touch screen.

    GET A QUOTE

    Picture Show

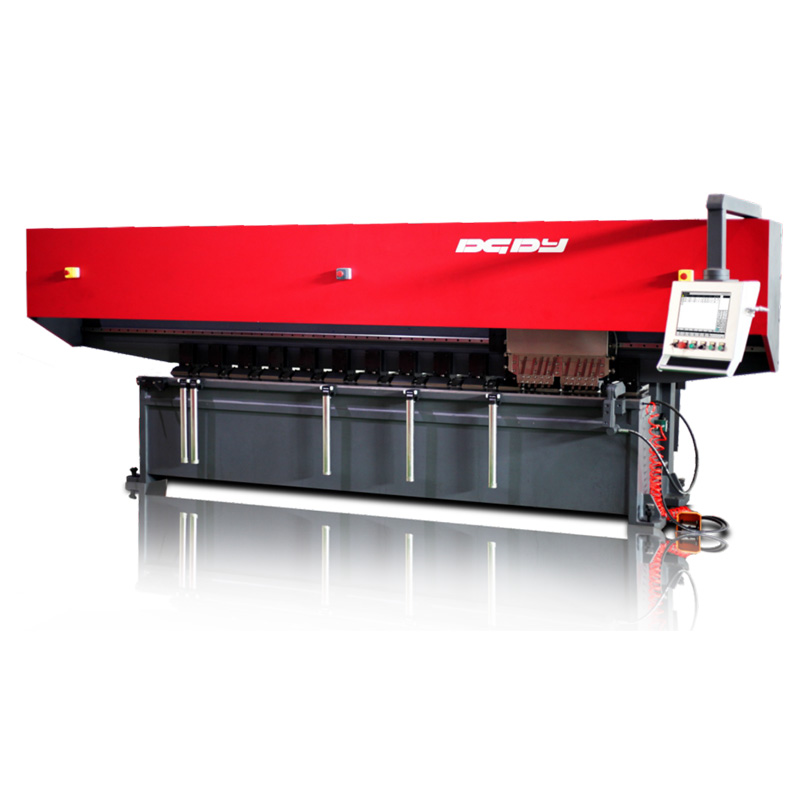

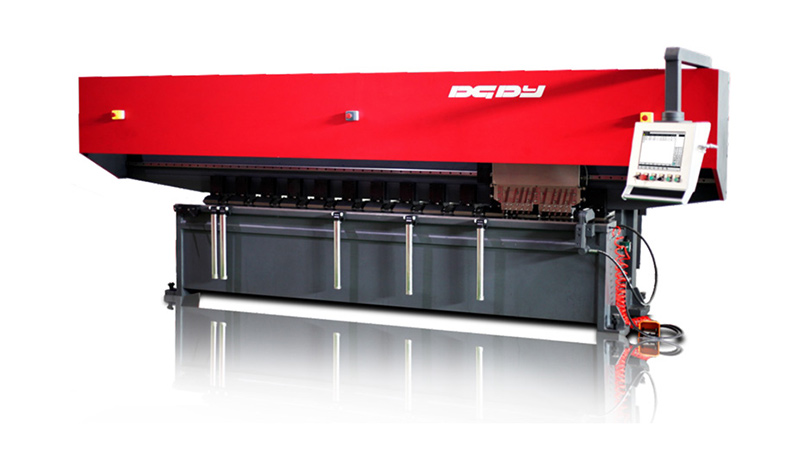

    CNC V-CUT Machine

    Features and Functions
    A.Touch screen graphi cprogramming, user-friendly interface.
    B.The controller develop preset V cutting parameter depending on sheet material and thickness.A learner operator can do the job.
    C.Under graphic programming mode,the operator can draw parts profiles and input dimensions on the touch screen.
    D.Under data mode,after programming one V cut groove,it’seasy for an operator to copy other V cut grooves program.
    E.Scanning QR code, internet,USB,3 ways to input program file
    F.Massive memory storage up to 32G,unlimited V cut groove,and the groove depth program
    G.One program can V cut workpiece with grooves on both sides of the sheet
    H.Full welded steel frame,stress relieved by vibration process
    I.Two tool carriage with 5 cutting tools,or 10 cutting tools (option)
    J.Tool carriage with Carbide chips and HSS Tools is changeable(option)

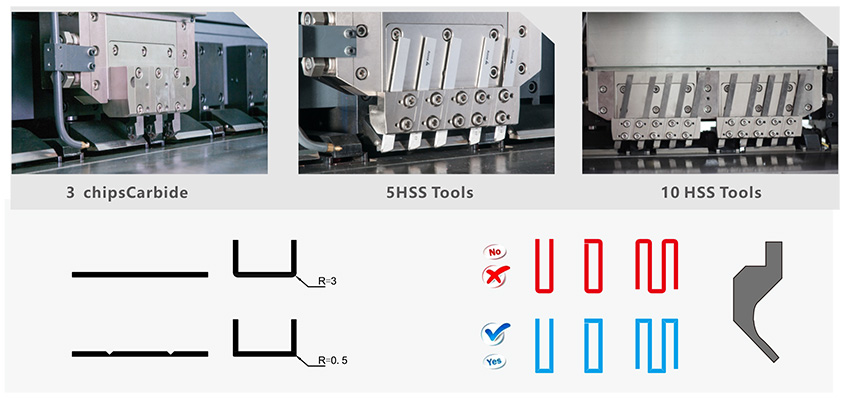

    Product Application

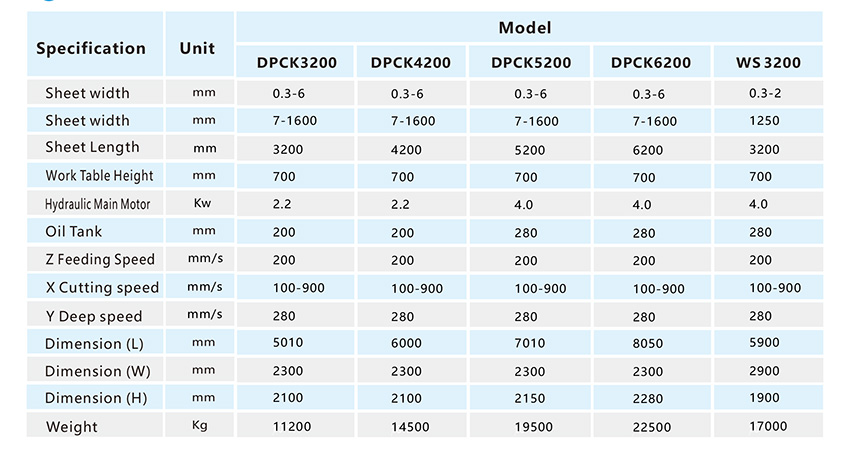

    Technical Data
