    • CNC Servo-electric Press Brake

    Introduction：
    Use range：
    1. Traditional servo valve control system, safe and reliable
    2. Full-closed control by grating ruler
    3. High precision, high productivity

    GET A QUOTE

    Picture Show

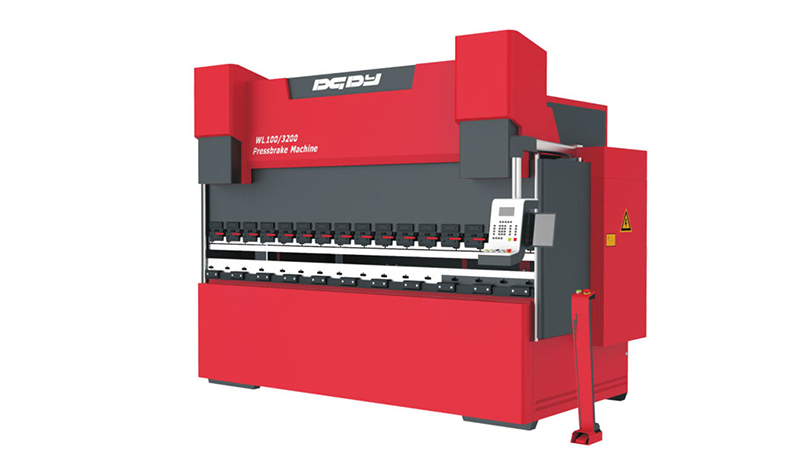

    Electro-Hydraulic Servo CNC Bending Machine

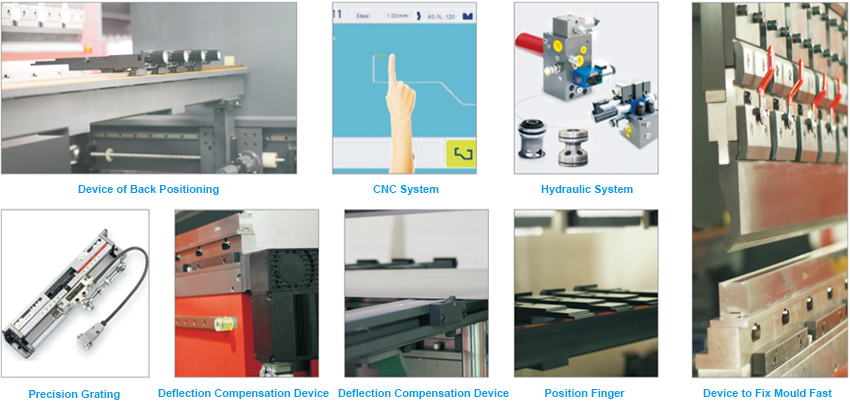

    Product Application

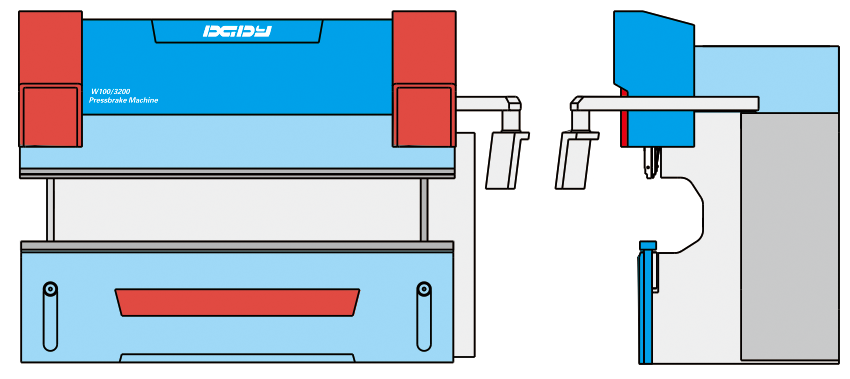

    Working table length: Max. size of bending material
    Space of column: The distance between the two side plates of machine. Material size bigger than this will be limited by throat depth.
    Max. bending size of plates, which material size larger than space of column
    Opening height: Working height between up ram and bottom working table



    Technical Parameters




    Techinical Data

    Specifications UNIT MODEL
    W-40/1500*  W-100/2500 W-100/3200 W-100/4100  W-160/3200 W-160/4100 W-200/3200  W-200/4100 W-200/5000  W-200/6000 W-250/3200 W-250/4100  W-250/5000 W-250/6000 W-320/3200 W-320/4100 W-320/5000 W-320/6000
    Bending force Kn 400 1000 1000 1000 1600 1600 2000 2000 2000 2000 2500 2500 2500 2500 3200 3200 3200 3200
    Usable bending length mm 1500 2500 3200 4100 3200 4100 3200 4100 5000 6000 3200 4100 5000 6000 3200 4100 5000 6000
    max.open height mm 400 460 460 460 460 460 500 500 500 500 500 500 500 500 500 500 500 500
    Distance between housings mm 1140 2010 2700 3600 2700 3600 2700 3600 4200 5200 2700 3600 4200 5200 2700 3600 4200 5200
    Depth of throat mm 300 400 400 400 400 400 400 400 400 400 400 400 450 450 450 450 450 450
    Ram stroke mm 160 200 200 200 200 200 240 240 240 240 240 250 250 250 300 300 300 300
    Approaching mm/s 150 200 210 210 200 200 170 170 170 170 120 120 120 120 100 100 100 100
    Bending mm/s 8 12 12 10 11 11 10 10 10 10 10 10 10 10 9 9 9 9
    Returning mm/s 120 150 150 150 150 130 130 130 130 130 130 130 130 110 110 110 110 110
    Main motor power Kw 4 7.5 7.5 7.5 15 15 15 15 15 15 18.5 18.5 22 22 30 30 30 30
    Oil tank capacity L 160 290 400 400 420 420 420 5S0 600 600 430 550 750 750 700 900 900 900
    Overall
    dimensions    		 Lenght mm 1700 2700 4300 4300 3500 4300 3500 4300 5300 6300 3500 4300 5300 6300 3550 4300 5300 6300
    Width mm 1540 1600 1600 1600 1650 1650 1900 1900 2250 2250 1900 1900 2300 2300 2250 2350 23SO 2350
    Hoight mm 2350 2400 2500 2550 2630 2630 2750 2750 3300 3300 2750 2750 3300 3500 3150 3200 3450 3500
    Net weight approx Kg 3800 7500 9800 11500 11800 13800 14700 16000 20500 25000 15000 18000 25100 29800 18500 22800 28800 33000
