    • CNC Dual Servo-hybrid Press Brake

    Introduction：
    Features And Function
    Fast - 10% performance increase by reducing cycle time
    High efficiency - 50% increase in energy efficiency (compared to traditional systems)
    Precise - positioning accuracy reaches 0.005mm

    GET A QUOTE

    Picture Show

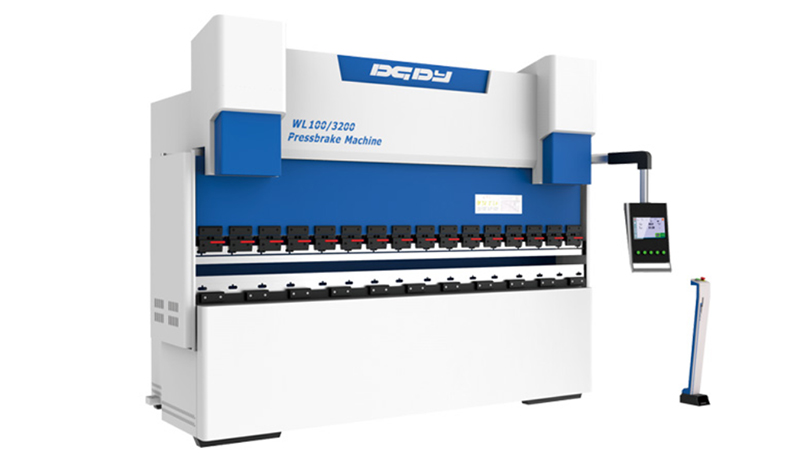

    Double Servo Hybrid Bending Machine

    Features And Function
    Fast - 10% performance increase by reducing cycle time
    High efficiency - 50% increase in energy efficiency (compared to traditional systems)
    Precise - positioning accuracy reaches 0.005mm
    Reliable - minimal risk of leakage
    Low Noise - Noise reduction in all operating modes
    compact - creating new spaces on the midplane
    Compatible - easy integration into CNC
    Optimization - less installation and service fees
    Environmental protection - the amount of hydraulic oil is greatly reduced



    Technical Data


    Specificcation Unit Model
    WBL-40/
    1500*    		 WBL-100/2500 WBL-100/3200 WBL-100/4100 WBL-160/3200 WBL-160/4100 WBL-200/3200 WBL-200/4100
    Bending force KN 400 1000 1000 1000 1600 1600 2000 2000
    Effective bend length mm 1500 2500 3200 4100 3200 4100 3200 4100
    Maximum opening height mm 400 460 460 460 4602 460 500 500
    Stereoscopic distance mm 1140 2010 2700 3600 2700 3600 2700 3600
    Depth of throat mm 300 400 400 400 400 400 400 400
    Slider stroke mm 160 200 200 200 200 200 240 240
    Fast speed mm/s 240 240 240 240 200 200 200 200
    Working speed mm/s 10-15 10-15 10-15 10-15 10-14 10-14 10-14 10-14
    Return speed mm/s 220 220 220 220 200 200 200 200
    Motor Power KW 5.5*2 5.5*2 5.5*2 5.5*2 7.5*2 7.5*2 7.5*2 7.5*2
    Oil tank capacity L 40*2 40*2 40*2 40*2 65*2 65*2 65*2 65*2
    Overall
    dimensions    		 Lenght mm 1700 2700 3400 4300 3500 4300 3500 4300
    Width mm 1540 1600 1600 1600 1650 1650 1900 1900
    Height mm 2350 2400 2500 2550 2630 2630 2750 2750
    Net weight approx kg 3800 7500 9800 11500 11800 13800 14700 16000
